Rails
Wall Mounting Rails
The backbone of the system. Rails mount with screws and nylon anchors anywhere on the wall and are spaced no more than 36 inches apart.
Solid oak — 12, 24, 32, 48 in — no studs required
The Wooden You Shelving System
The back bone of the system is the solid oak wall mounting rail. Rails can be placed anywhere upon your wall without being attached to studs. Arms easily slide into the top or bottom of the rails and tighten in place anywhere upon the rail, as do special attachments such as drawer units and shoe racks.
A locking mechanism at the back of each arm transfers weight down through the rail rather than pulling away from the wall. Every component is hand sanded, sealed, stained and finished, and carries a lifetime warranty and return policy.
Rail and arm specification
- Rail lengths
- 12, 24, 32, 48 in
- Edge styling
- OGEE-CROWN or BULL-NOSE
- Rail spacing
- 36 in maximum
- Assembly
- Screws and nylon anchors, no studs
- Materials
- Solid oak
- Hardware
- Included with every rail
Tools required: level, screwdriver, Allen wrench (supplied with rail).
Components
Arms
Light Duty Arms
Basic shelf support for shelves 6 to 18 inches deep. Arms slide into the top or bottom of a rail and tighten in place.
6, 8, 10, 12, 14, 16 in — 70 lb per arm
Arms
Heavy Duty Arms

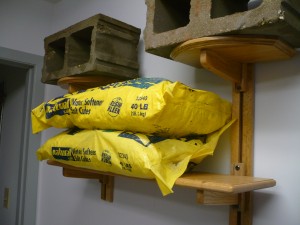

High weight support for shelves 12 to 24 inches deep, carrying load down through the rail rather than away from the wall.
12, 14, 16, 22 in — 150 lb per arm
Brackets
Designer Brackets
The same support as the light duty arm in a shaped profile, for shelves 8 to 14 inches deep.
8, 10, 12 in — 70 lb per bracket
Brackets

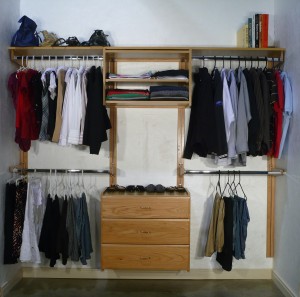

Closet Arms
The CAR-12 carries a shelf and a steel clothing rod together; the COR-12 carries the rod alone.
CAR-12 / COR-12 — 12, 14 in — 125 lb
Shelves

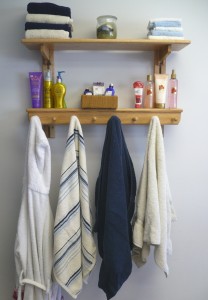

Airshelves
Oak or maple veneer over solid oak ribs and a styrofoam core, bonded with Z100 adhesive, with rounded, beveled or flat solid edges.
Custom length and width — 3/4 in or 1 in thick
Rails
End Caps
End caps finish the exposed ends of a mounted rail so the run reads as one continuous piece.
Solid oak — closes an open rail run
Finishes
Stains & Finishes
Every component is finished by hand in the stain range shown on the stain graph, so rails, arms and shelves match across a room.
Hand sanded, sealed, stained, finished
Collections by room and application

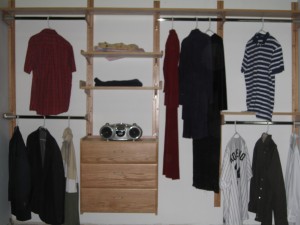

Closets
Adjustable closet shelving with shoe racks, drawer units and clothing rods that slide into the same wall mounted rails.
/closets/

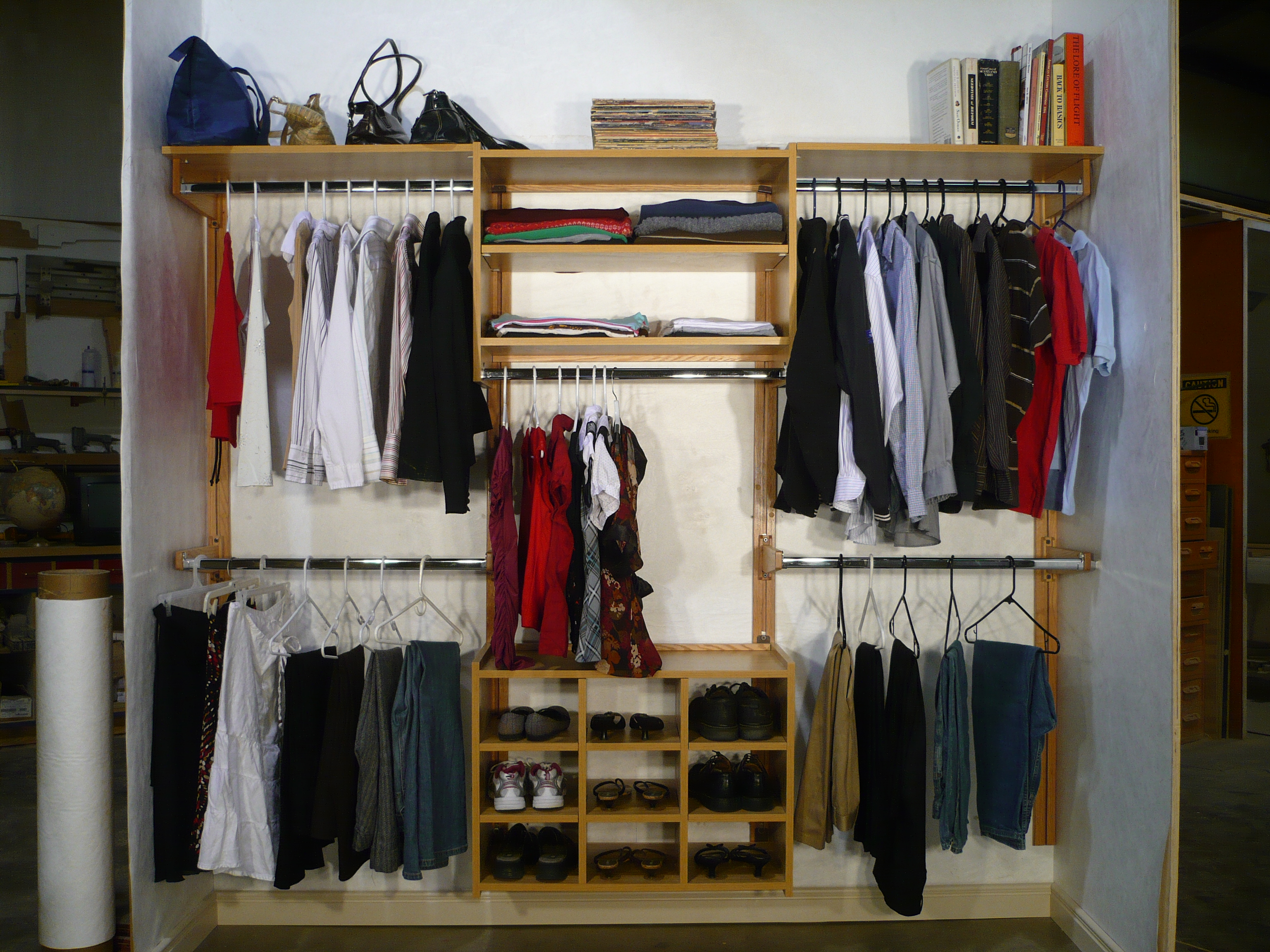

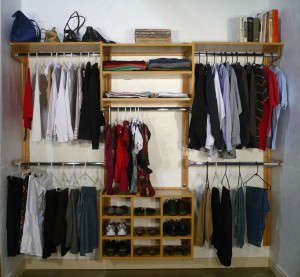

Wall to Wall Closets
Closet runs taken wall to wall, with rails butted end to end to carry a continuous shelf line.
/wall-to-wall-closets-wall-closet-systems/

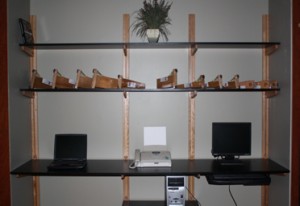

Home Offices
Desk height shelving, overhead runs and drawer units assembled from the same rails and arms.
/home-offices/

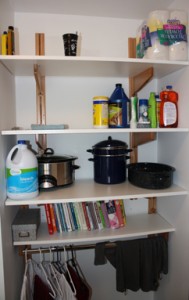

Kitchens/Pantries
Pantry and kitchen shelving cut to the depth a pantry needs, in a finish that matches the cabinetry.
/kitchenspantries/
Media/Theater
Media wall and theater room shelving sized around components and display equipment.
/mediatheater/

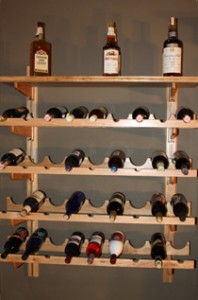

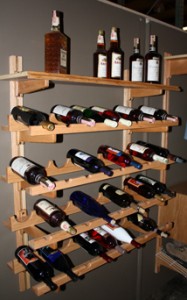

Wine/Liquor Racks
Wine and liquor racks carried on the rail system, so a bar wall can be reconfigured later.
/bars-wine-racks/

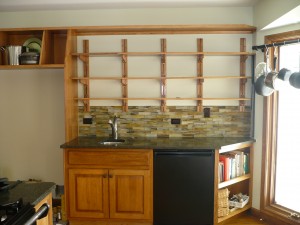

Wall Bookshelves
Wall mounted bookshelf runs for book storage, with load carried down through the rail.
/wall-bookshelves/
Floating Shelves
Floating shelves at custom sizes with the solid oak edge in a rounded, beveled or flat style.
/floating-shelves/

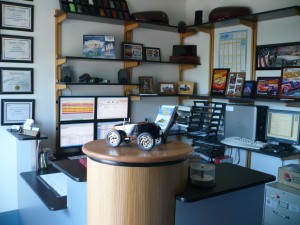

Desktop Shelves
Short shelf runs set above a desk surface, adjustable in seconds without unmounting the rail.
/desktop-shelves/
Corner Shelving
Shelving taken around an inside or outside corner using two rail runs.
/corner-shelving/

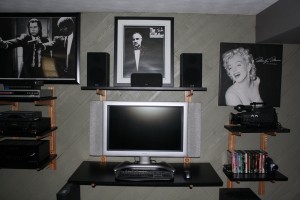

Wooden TV Stands
Wood television stands and component shelves built from the same oak components.
/wooden-tv-stands/

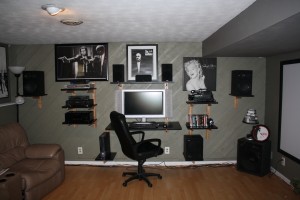

Built in Entertainment Centers
Built in entertainment walls combining shelving, drawer units and media openings.
/built-in-entertainment-centers/
House Storage Systems
Whole house storage runs: garage, laundry, utility and basement shelving on one rail standard.
/house-storage-systems/
Installing, warranty and custom sizing
Installation
All you need is a level, a screwdriver and the Allen wrench included with a rail. Rails mount with screws and nylon anchors, and where a run meets a stud the anchors are simply left out. Step by step guides cover each product.
Warranty and returns
Whether the order is an entire kit, a single rail or a single arm, every product carries a lifetime warranty and a return policy. A damaged piece is repaired or replaced at no charge.
Custom sizing
Airshelves are made to any custom length, width and thickness, with edges rounded, beveled or flat, and every component can be stained to match. Layout blueprints were prepared from room dimensions and the attachments chosen.
